12 Pin Female DTM Series Mini Deutsch Connectors DTM06-12S ATM06-12S

Description

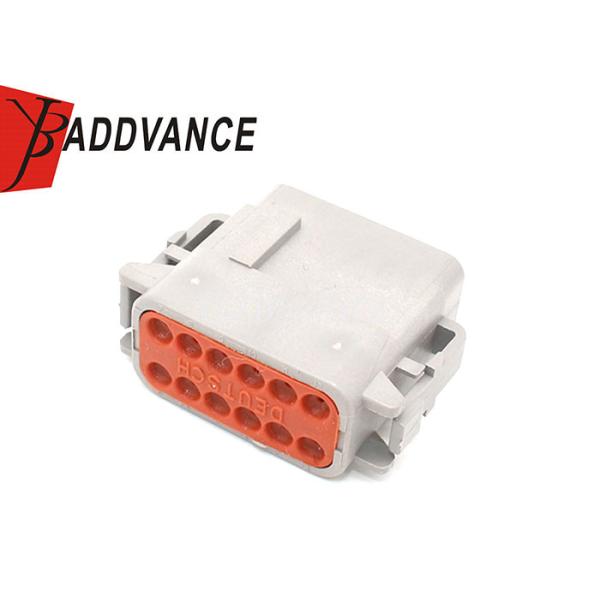

12 Hole Female Sealed Grey DTM Series Deutsch Connector

2 Row , 12 way

Series : DTM-Series
Configuration : 12 Way Receptacle Housing + 1 Wedgelock+12 terminals +12 wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature Range: -55°C to 105°C

Height : 15.24mm

Width: 40.01mm

Length : 1.185 in

The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.

The DTM connector line was developed to fill the need for lower amperage, multi-pin connectors.

Contact insertion and removal does not require any special tools.
