Rectangular LED Lighting Connector JST-08R-JWPF-VSLE 8 Way JST JWPF Series

Product Categories

Xi'An YingBao Auto Parts Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	YBADDVANCE
Model Number :	JST-08R-JWPF-VSLE
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	T/T, Western Union,PayPal , credit card
Supply Ability :	50,000 units/moth
Delivery Time :	About 5-8 work days

Add to Cart

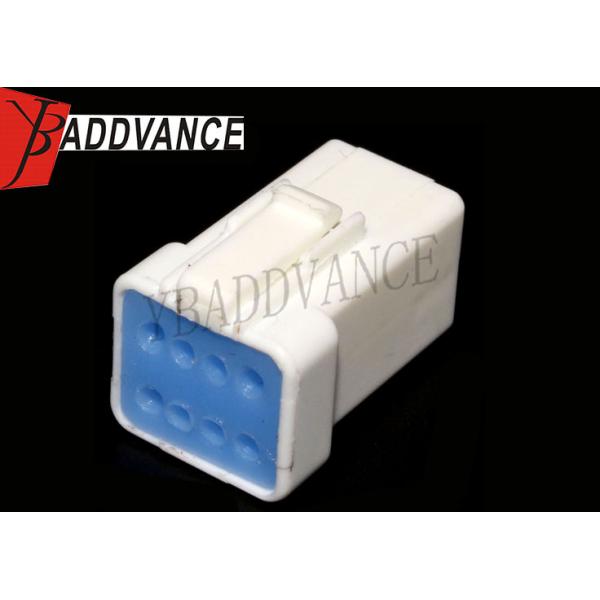

JST-08R-JWPF-VSLE 8 Way JST JWPF Series Rectangular LED Lighting Connector

Description

8 Way JST JWPF Series Rectangular LED Lighting Connector

Pitch Spacing : 2mm

Height : 10.7 mm

Length : 16.5 mm

Width : 9.5 mm

IP rating: IPX7

Mating parts: JST-08T-JWPF-VSLE
Operating Temp Range: -55°C to +85°C

Specification

Item name	JST-08R-JWPF-VSLE 8 Way JST JWPF Series Rectangular LED Lighting Connector
P/N	JST-08R-JWPF-VSLE
Wire Size	22-26AWG
Operating Temperature range	-55℃~85℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	8 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	8 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles
